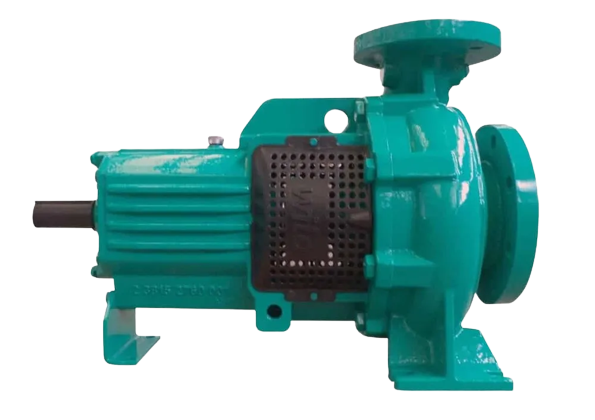

MISO/PISO End-Suction Pump
Key Features
| MISO / PISO End-Suction Pump | : | Pump Type Single-Stage End-Suction Centrifugal Design Standard ISO 2858 / DIN 24255 Material Cast Iron / Stainless Steel (optional) Impeller Material Bronze / Stainless Steel / Cast Iron Shaft Material Stainless Steel (AISI 304 / 316) Seal Type Mechanical Seal / Gland Packing (optional) Flow Rate Up to 1,800 m³/h Head Range Up to 160 meters Operating Pressure Up to 16 bar Temperature Range -10°C to +120°C Motor Power 0.37 kW to 315 kW Speed 1450 / 2900 RPM Mounting Type Horizontal Connection Type Flanged (DIN / ANSI Standards) Configuration Monoblock (MISO) / Bare Shaft (PISO) |
| View More Info | ||
MISO/PISO End-Suction Pump – Heavy-Duty, High-Efficiency Centrifugal Pump for Industrial and Commercial Water Systems
The MISO/PISO Pump Series is a high-performance range of single-stage end-suction centrifugal pumps designed for reliability, durability, and energy efficiency across industrial, commercial, and municipal applications. Built to handle high flow rates and consistent pressure, these pumps are ideal for water supply, fire-fighting, HVAC, irrigation, and general fluid transfer systems.
The MISO/PISO series combines robust construction with precision hydraulic design to deliver optimal efficiency and long operational life. Featuring a back-pull-out design, the pump allows for easy maintenance — internal components such as the impeller, shaft, and bearings can be accessed without disturbing the suction or discharge pipework. This design ensures minimal downtime and reduced maintenance costs.
Constructed from high-quality cast iron or stainless steel, depending on the model, the MISO/PISO pumps are engineered to withstand continuous heavy-duty operation. The dynamically balanced impeller and precision-machined shaft minimize vibration and noise, ensuring smooth and quiet performance even at high speeds. The hydraulic components are designed for superior energy efficiency, providing significant savings in long-term operational costs.
The MISO (Monoblock type) and PISO (Bare shaft type) variants of this series are tailored for different installation requirements. The MISO model integrates the motor and pump into a compact monoblock design, saving space and simplifying installation, while the PISO version offers flexibility for larger systems requiring independent motor selection and coupling arrangements. Both models maintain the same hydraulic excellence and reliability standards.
Ideal for both clean and slightly contaminated liquids, the MISO/PISO pumps perform effectively in applications such as building water distribution, cooling systems, industrial processes, and agricultural irrigation. They are also well-suited for fire-fighting booster sets and pressure-boosting systems that demand stable flow and dependable performance.
The series is designed in compliance with ISO 2858 and DIN 24255 standards, ensuring interchangeability and global compatibility. Each component is crafted to meet the highest engineering precision, delivering uniform performance, low noise, and excellent efficiency.
Key Features & Benefits:
High Efficiency: Optimized impeller design ensures maximum hydraulic efficiency and reduced energy consumption.
Rugged Construction: Cast iron or stainless steel body built for heavy-duty continuous operation.
Easy Maintenance: Back-pull-out design enables servicing without disturbing pipe connections.
Low Noise & Vibration: Dynamically balanced rotating components ensure smooth and quiet operation.
Flexible Design: Available in monoblock (MISO) and bare shaft (PISO) configurations.
Versatile Applications: Suitable for water supply, fire-fighting, HVAC, industrial circulation, and irrigation systems.
Leak-Free Performance: High-quality mechanical seal ensures tight sealing under pressure.
Compact & Space Saving: Monoblock version ideal for limited installation spaces.
Corrosion Resistance: Available in stainless steel variants for handling aggressive liquids.
Long Service Life: Precision engineering ensures durability and reliability under continuous operation.
Applications:
Water supply and pressure boosting systems
Fire-fighting and emergency water systems
Cooling and air-conditioning (HVAC) systems
Industrial process and plant water circulation
Irrigation and agricultural systems
Municipal water distribution and utilities
Boiler feed and condensate return systems
General clean liquid transfer applications
| MISO / PISO End-Suction Pump | Pump Type Single-Stage End-Suction Centrifugal Design Standard ISO 2858 / DIN 24255 Material Cast Iron / Stainless Steel (optional) Impeller Material Bronze / Stainless Steel / Cast Iron Shaft Material Stainless Steel (AISI 304 / 316) Seal Type Mechanical Seal / Gland Packing (optional) Flow Rate Up to 1,800 m³/h Head Range Up to 160 meters Operating Pressure Up to 16 bar Temperature Range -10°C to +120°C Motor Power 0.37 kW to 315 kW Speed 1450 / 2900 RPM Mounting Type Horizontal Connection Type Flanged (DIN / ANSI Standards) Configuration Monoblock (MISO) / Bare Shaft (PISO) |
|---|
